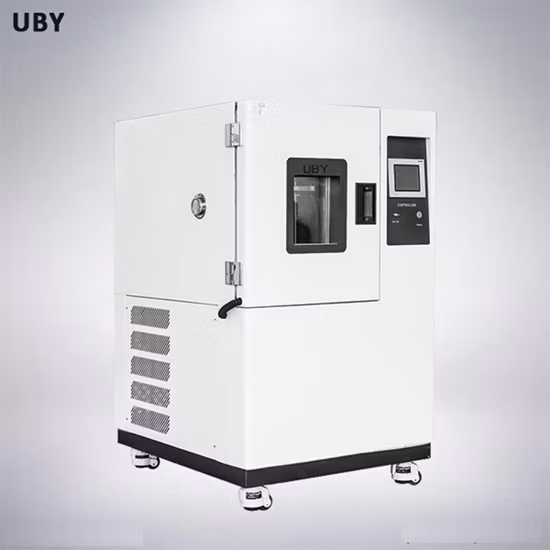

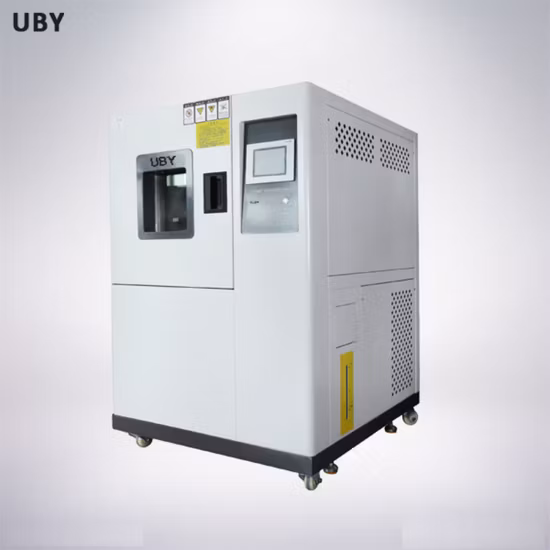

Rapid Change Rate Temperature Climatic Test Chamber
Rapid Change Rate Temperature Climatic test Chamber Application Applicable to test the changes of the instruments, elect
Description
Basic Info.
Model NO. | YICT-225 |
Insulation | PU & Fiberglass Wool |
Materia | Stainless Steel |
Circulation | Sirocco Fan |
Internal Size(W*H*D) | 500×750×600mm |
Transport Package | Wooden Cases |
Specification | 1000 litres |
Trademark | Yuan Yao |
Origin | Guangdong, China |
Production Capacity | 100 Sets/Month |
Product Description
Rapid Change Rate Temperature Climatic test ChamberApplication
Applicable to test the changes of the instruments, electrical, electronic products, machine and parts under the rapid temperature changeor the the gradient conditions.
Specification
1. High quality, resonable price.
2. Digital controller
3. Indicton resolution: 0.01° C
4. Excellent performance
5. Stainless steel
Model | YICT-225 | YICT-306 | YICT-408 | YICT800 | YICT-1000 | ||||
Inner chamber size w×h×d(cm) | 50×75×60 | 60×85×60 | 50×85×80 | 100×100×80 | 100×100×100 | ||||
Exterior chamber size w×h×d(cm) | Depends on inner chamber size | ||||||||
Testing temperature range | -70~150ºC(KS);-40~150ºC(KL);-20~150ºC(KR) | ||||||||
Fast change temperature range | -70ºC kinds:-50~+85ºC(KS);-40ºC kinds:-20~+85ºC(KL);-20ºC kinds:0~+85ºC(KR) | ||||||||
Heating-up&Cooling-down speed | 3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(Linear or Non-linear) | ||||||||
Performance | Temp.fluctuation | ±2.0ºC | |||||||
Temp.uniformity | ±1.5ºC | ||||||||
Temp.resolution | 0.01ºC | ||||||||
Heating-up time | -70~150ºC<60min;-40~150ºC<50min;-20~150ºC<35min | ||||||||
Cooling-down time | +20~ -70ºC<70min;+20~ -40ºC<55min;+20~ -20ºC<35min | ||||||||
Material | Exterior chamber material | Cold-rolled steel+Powder coating | |||||||
Interior chamber material | SUS#304 Stainless steel | ||||||||
Insulation | PU fiberglass wool | ||||||||
System | Wind circulation | Cooling fan | |||||||
Heating system | SUS#Stainless steel high-speed heater | ||||||||
Refrigeration system | Imported tecumseh compressor+fin type evaporator+ air(water)cooling system | ||||||||
Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | ||||||||
Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | ||||||||
Power supply | AC 3phase380V 60/50Hz | ||||||||
Customization service | Non-standard or special requirements are all welcome |
