Rapid Temperature Change Test Chamber

Basic Info.

Model NO.	BTKS-SERIES
Temperature Deviation	≤2.0ºC
Temperature Range	-70-150ºC
Keywords	Environmental Chamber Manufacturers
Transport Package	Each Set Protected with Resin Fiber and PP Film, T
Specification	Test Space 500x600x500(customizable)
Trademark	DGBELL
Origin	Guangdong China
HS Code	8479899990
Production Capacity	100set /Month

Product Description

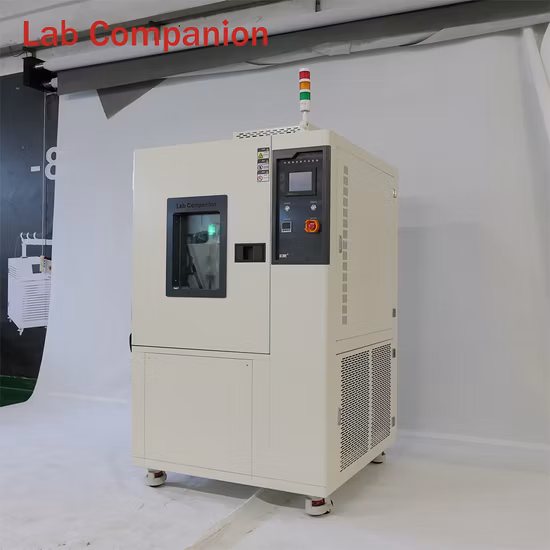

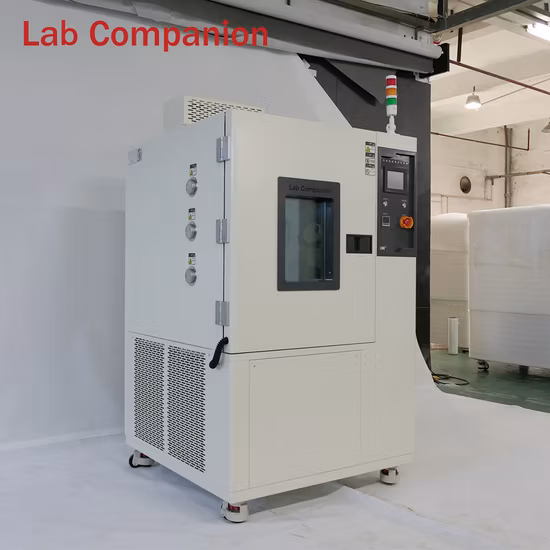

Rapid Temperature Change Test ChamberProduct show

Application

Rapid Rate Temperature Cycle Test Chamber is developed and manufactured to match the ESS (Environment Stress Screen) test. It is an ideal reliability testing and validation equipment to find out the product failure with high accelerate environment condition. Our test chambers help you to make safe and reliable products before delivering to the people who use them.

Feature

Test Cabinet made by Seal Welding SUS #304 Stainless Steel.
Introducing Japanese and German technology for the Refrigerating System, energy saving more than 20%.
Fire Resistant High Strength PU Foam Insulation Material.
Temperature Ramp Rate: 5°C / 10°C / 15°C per minute (Linear or Non-Linear controllable).
Optional Function: Fume Exhaust System, Explosion-proof System.

Standard Compliance

IEC60068-2-1:2007 (GB/T2423.1-2008) Environmental testing - Part 2: Test methods - Tests A: Cold
IEC60068-2-2:2007 (GB/T2423.2-2008) Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
IEC 60068-2-14 2009 Environmental testing - Part 2-14: Tests -Test N: Change of temperature

Performance parameters

Model	BTKS-150	BTKS-225	BTKS-408	BTKS-800	BTKS-1000
Test Space	500x600x500	500x750x600	600x850x800	1000x1000x800	1000x1000x1000
W x H x D (mm)
External Dimension	700x1700x1370	700x1750x1420	650x1650x1270	1200x1900x1620	1200x1900x1820
W x H x D (mm)
Temperature Range	-70~150ºC
Temperature Fluctuation	±0.5ºC
Temperature Deviation	≤2.0ºC
Temperature Uniformity	≤±2.0ºC
Heating Rate	From -40ºC to 80ºC,full range non-linear average about5ºC/min(10ºC/min or15ºC/min can be customized) ,no load.
Cooling Rate	From 80ºCto -40ºC ,full range non-linear average about5ºC/min(10ºC/min or15ºC/min can be customized),no load
Temperature Overshoot	≤±2ºC

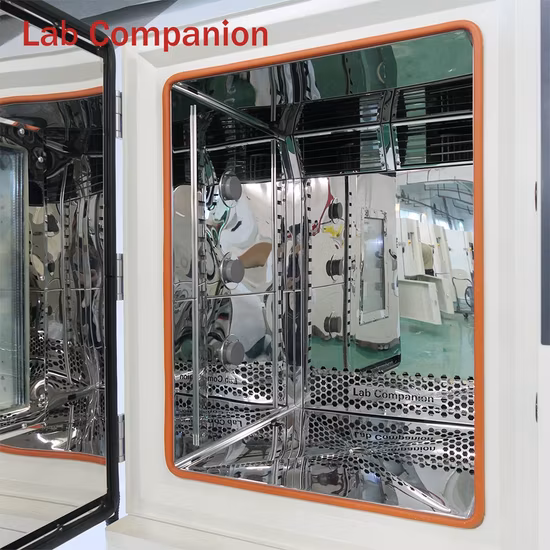

Internal Material	1.2mm thick SUS#304 high &low temperature resistance stainless steel.
External Material	Adopt flame retardant high strength PU Polyurethane foam insulation material.
Control Method	Touch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning.
Compressor	Tecumseh (France)-fully air-cooled double-fall cooling compressor. Or Bock (Germany) semi-enclosed air-cooled refrigeration.
Safety Protection	Explosion-proof pressure relief device, explosion-proof chain, mobile phone alarm device, networking, smoke exhaust device, fire extinguishing device, etc.

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.15+ years experience in test chambers manufacturing, High performance for your projects.With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

Rapid Temperature Change Test Chamber

Complete QC inspection process,Guarantee high quality of each machine.
1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control
Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;2.Email contact;3.Video Conferencing;
