Benchtop Temperature Humidity Climate Test Chamber / Environmental Test Chamber
Description
Basic Info.
| Model NO. | ZH-HS-49A~F |
| Service | OEM / ODM / Non-Standard Available |
| Temp. Cooling Speed | 1degree ~ 20degree Per Min, Customized |
| Humidity Range | 10%~98% Relative Humidity |
| Certification | Ce, RoHS, FCC, ISO, SGS Certificates |
| Transport Package | Wooden Case |
| Specification | Customization available |
| Trademark | Sailham |
| Origin | Guangdong, China |
| HS Code | 8479899990 |
| Production Capacity | 5000sets/Year |
Product Description
Constant Benchtop Temperature Humidity Test Chamber for Lab Test Features:Humidity and temperature tester are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing. In keeping with the needs of today's lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior workspace.

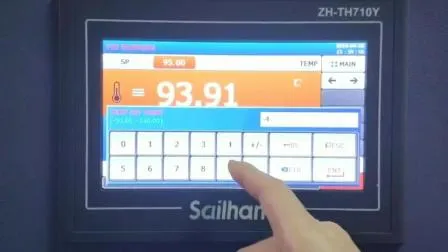

Lowest temperature: -20 or -70°C (-4 or -100°F)Highest temperature: 150°C (302°F)Humidity range: 20% to 98% RHChamber size: 2.9 cubic feetTouch-screen Watlow F4T programmer with Ethernet access
Technical parameters
| Model | ZH-HS-49 (A~F) | ZH-HS-150 (A~F) | ZH-HS-225 (A~F) | ZH-HS-408 (A~F) | ZH-HS-800 (A~F) | ZH-HS-1000 (A~F) |
| Inner size: WHD(cm) | 35*40*35 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 55*95*110 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC) | |||||
| Humidity range | 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition) | |||||
| Temp analytic accuracy/uniformity | 0.1ºC/±2.0ºC | |||||
| Temperature Fluctuation | ±0.5ºC | |||||
| Humidity analytic accuracy/ Humidity control accuracy | ±0.1%;±2.5% | |||||
| Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) | |||||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system | |||||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 | |||||
| Compressor | Original France"Tecumseh"brand | |||||
| Controller | TEMI South Korea | |||||
| Power | AC220V 50/60Hz & 1, AC380V 50/60Hz 3 | |||||
| weight (kg) | 150 | 220 | 270 | 320 | 450 | 580 |
Our company.
Work Shop.
Features
High performance and quiet operation (65 dBa)Space-saving footprint, designed for flush installation to wallStainless steel exteriorFull thermal break around doorframeOne 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)Three levels of overheat protection, plus overcool protectionEasy lift-off service panels, electrical access on leftDetachable eight-foot power cord with plugDirect water supply connection for continuous operation (supply tank optional)ETL listed electrical panel conforming to UL 508A
Our Factory
Honorary Certifications
Exhibitions and customers visit our factory
FAQ
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
Contact USTel :+86-769-81105095 Fax:+86-769-22400804Website :sailham.en.made-in-china.com Company Address:1612 Huiyi Fortune Center Building, Intersection of Bulong Rd. and Longguan Rd., Longhua new district, Shenzhen, Guangdong, ChinaFactory Address: NO.53,Jin Yuan Xin Road,Shi Long Keng,Liao Bu Town. Donggaun. Guangdong China (Mainland)
Our Contact
